DMPL-3100 Heavy duty “Dual Product” spring rewind hose reel 10mm ID, L= 30m. No hose.

Heavy duty, “Dual Product” spring rewind hose reel. Low Pressure. Capacity 30m x 10mm ID hose.. Supplied without hose.

SKU: DMPL-3100 Category: Tag: Brand:

COXREELS® DP Series “Dual Product Delivery” spring driven hose reels have two swivel inlets and two outlets for dual hose applications. Like the SP Series they are built to handle large hose diameters used in applications demanding large volume delivery in low and medium pressures. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.

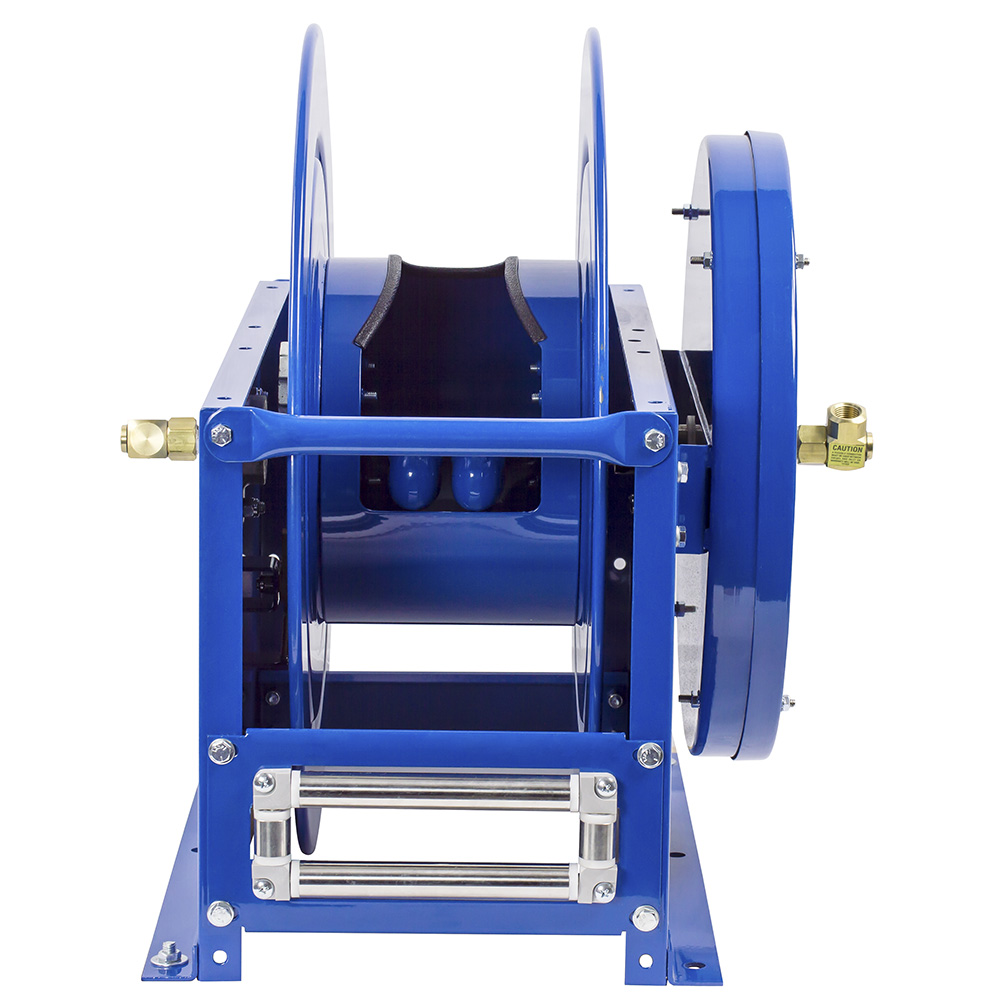

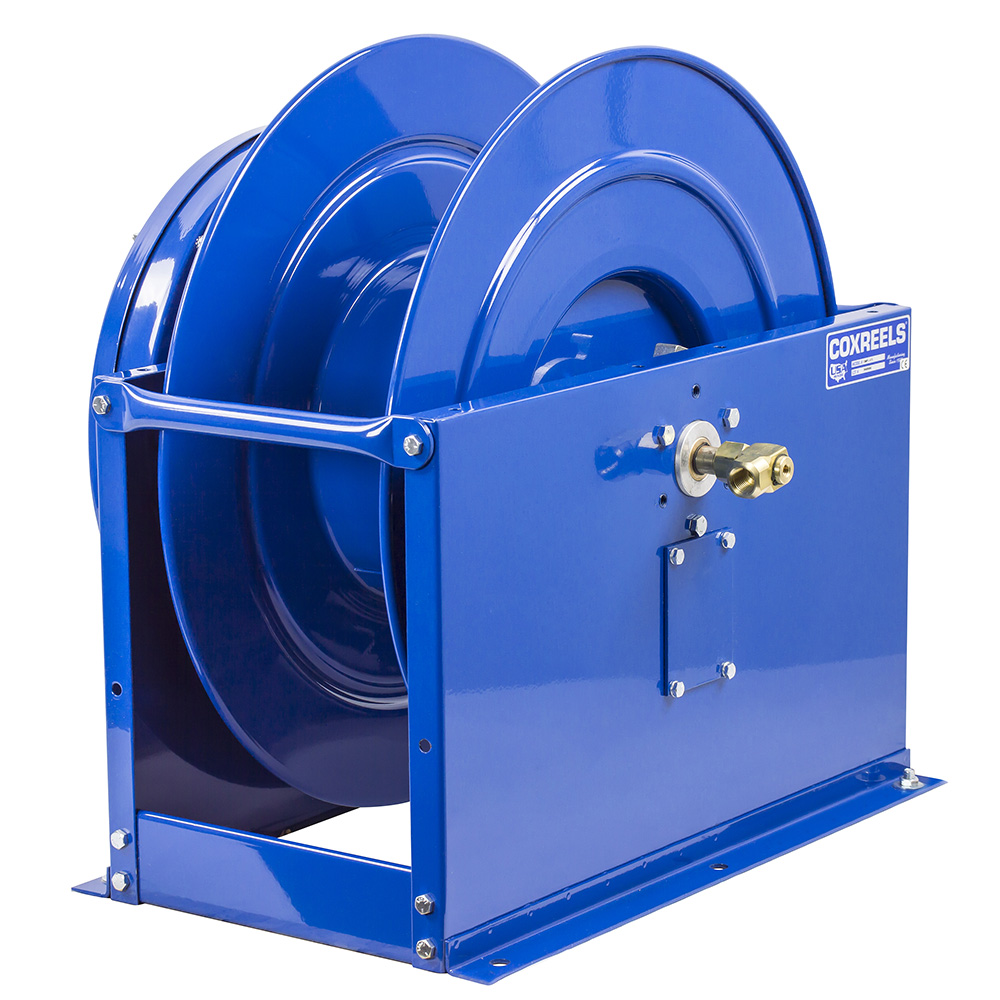

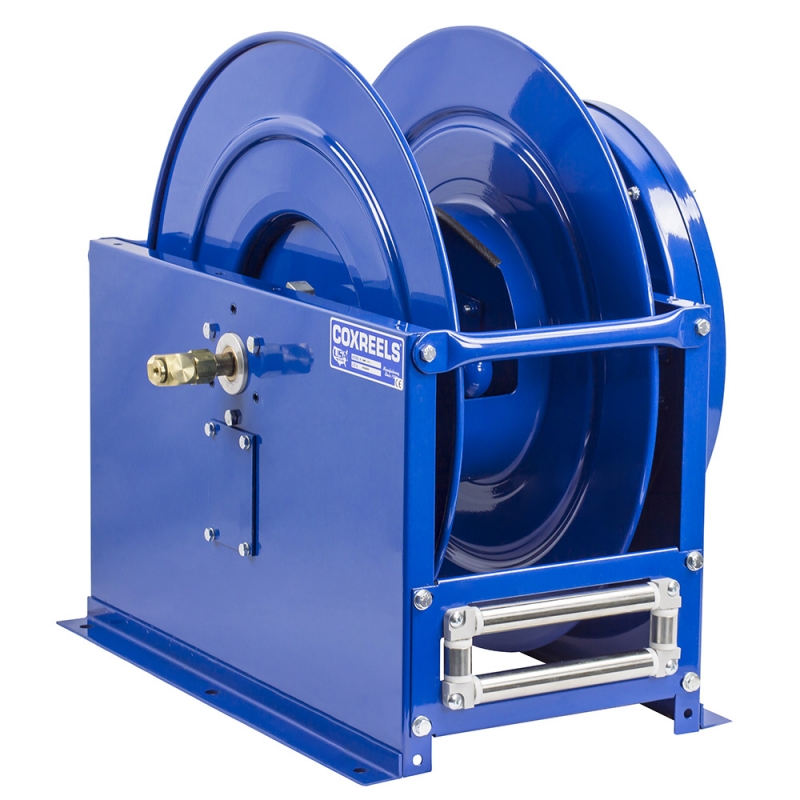

Model shown: DLPL-450

Weight 54 kg
Dimensions 86 × 56 × 66 cm
Hose ID

10
Hose OD

17
Hose Length

30
Working Pressure

175
Inlet

3/8" x 3/8" NPT (F)
Outlet

3/8" x 3/8" NPT (F)
With hose

No
Leader hose

No
Drive

Spring

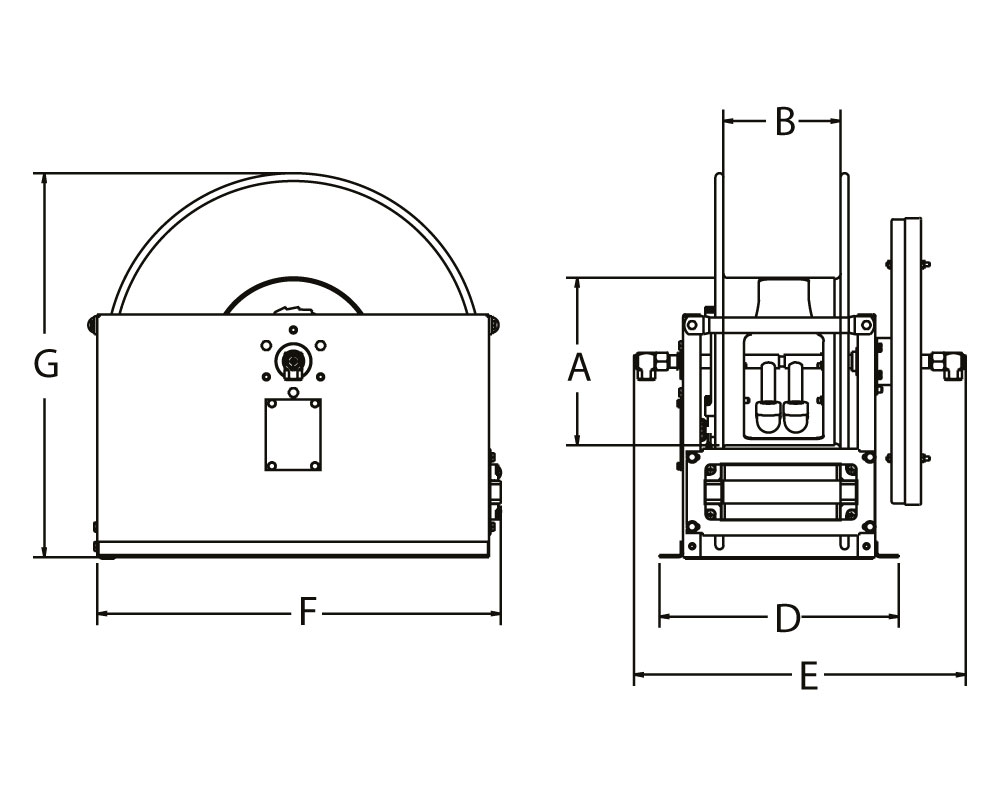

Dim A

267
Dim B

190
Dim C

610
Dim D

390
Dim E

559
Dim F

660
Dim G

622
Weight

54
Temperature (Max)

99°C
Rating

Medium Pressure
