EZ-SG17-H325-BGX Slow rewind side mount hose reel10mm ID, L= 8m
EZ-SG17-H325-BGX Slow rewind side mount hose reel10mm ID, L= 8m - Image 2

EZ-SG17-H325-BGX Slow rewind side mount hose reel10mm ID, L= 8m

Slow rewind, side mount hose reel. High Pressure. Capacity 8m x 10mm ID hose.

SKU: EZ-SG17-H325-BGX Category: Tag: Brand:

SG Series expands the capabilites of the “Side Mount” spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SG Series features a simple two bolt mounting pattern for easy installation and detachment on any vertical flat serface including tool benches, service vehicles, tool boxes vehicle lifting systems, walls, beams, machine tools and more.The outfitted guide arm and roller assembly are easily moved to one of the six different positions with a standard 1/2” spanner.

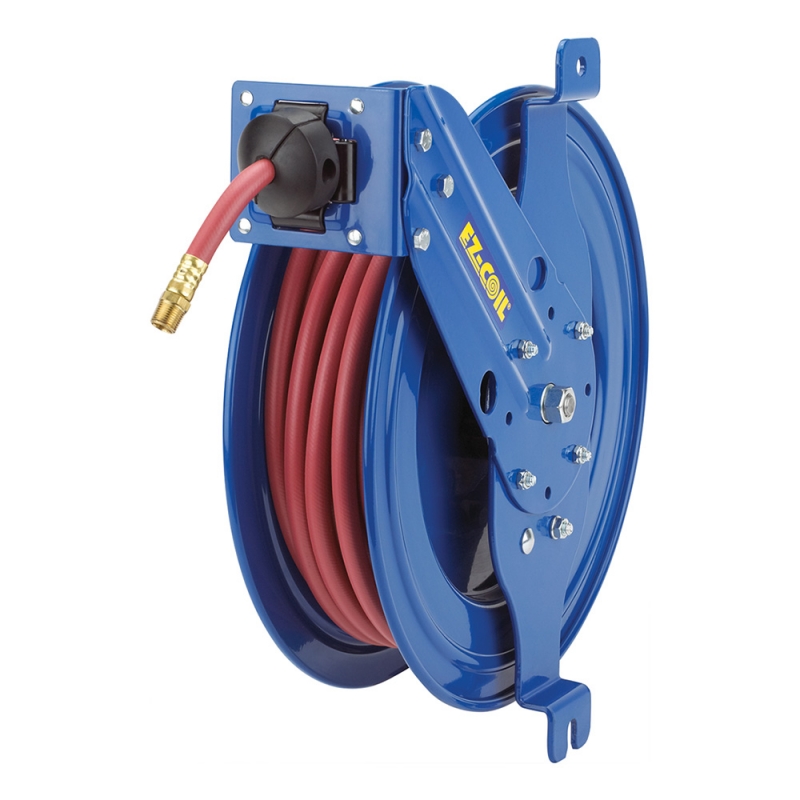

Model shown: EZ-SG13-L350

Weight 20 kg
Dimensions 45 × 22 × 49 cm
Hose ID

10
Hose OD

17
Hose Length

8
Working Pressure

276
Inlet

3/8"
Outlet

3/8"
With hose

Yes
Leader hose

No
Drive

EZ Coil
Dim A

185
Dim B

496
Dim C

432
Dim D

64
Dim E

458
Weight

20
Temperature (Max)

99°C
Hose/Cable

High Pressure, 2 Wire Braid. Grease
Rating

High Pressure
Hose stop

Yes
Media

Grease
