Spring rewind, single pedestal hose reel. Medium Pressure. Capacity 12m x 10mm ID hose.
SH Series Super Hub™ spring driven hose reels, like the P Series, have a history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

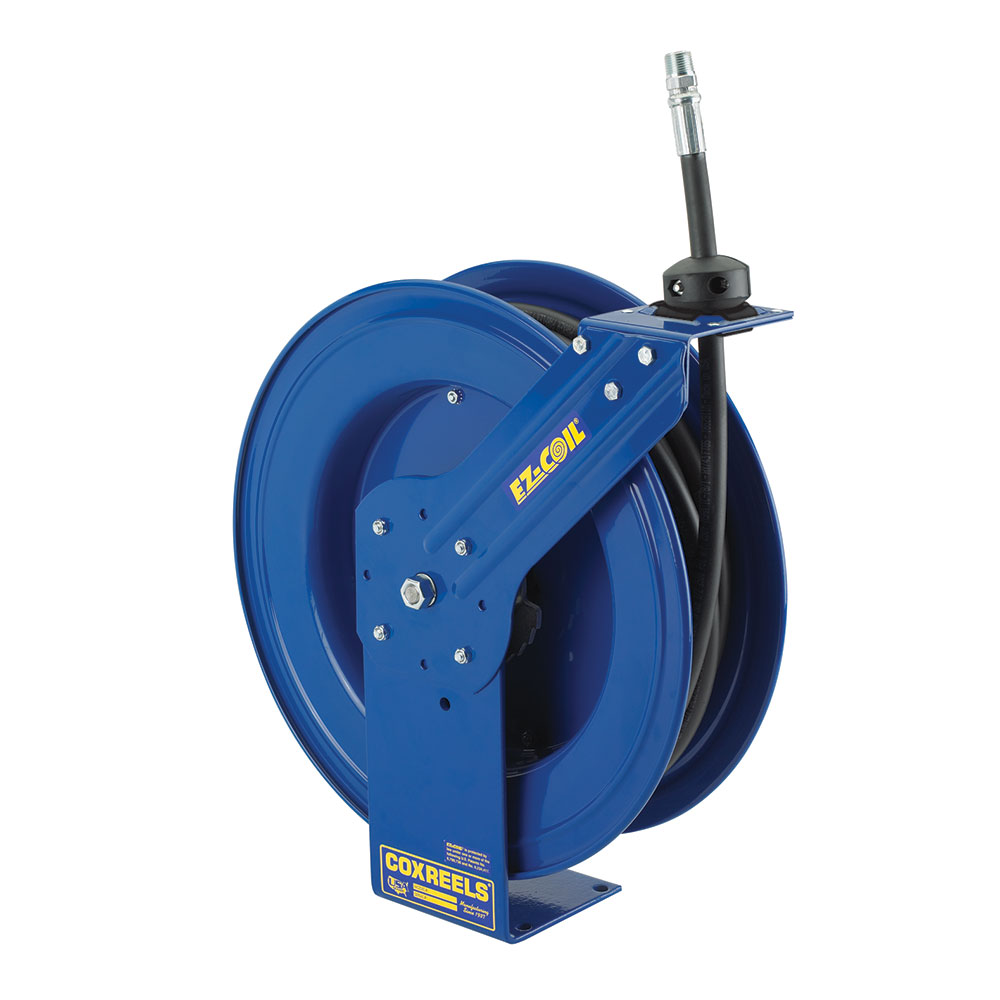

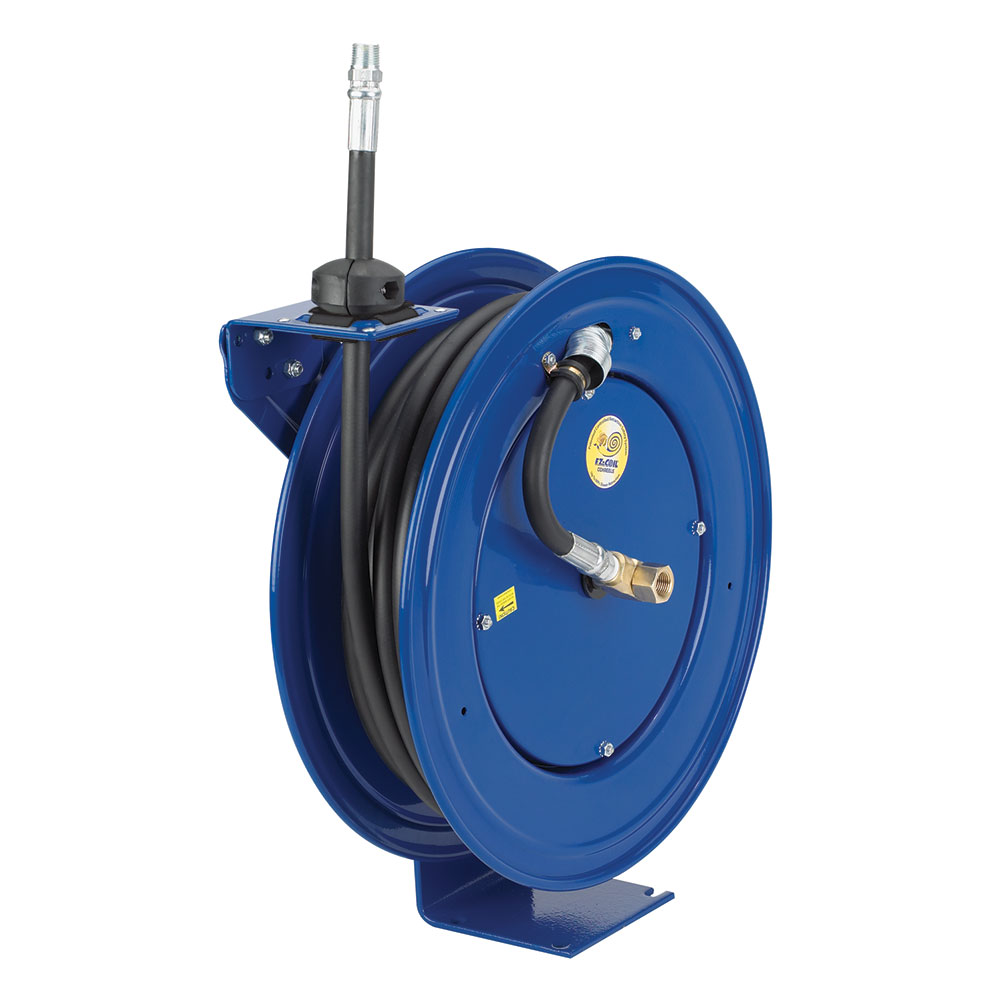

Model shown: MP-N-450
| Weight | 29 kg |
|---|---|
| Dimensions | 53 × 27 × 56 cm |
| Hose ID | 10 |
| Hose OD | 17 |
| Hose Length | 12 |
| Working Pressure | 210 |
| Inlet | 3/8" |
| Outlet | 3/8" |
| With hose | Yes |
| Leader hose | No |
| Drive | Spring |

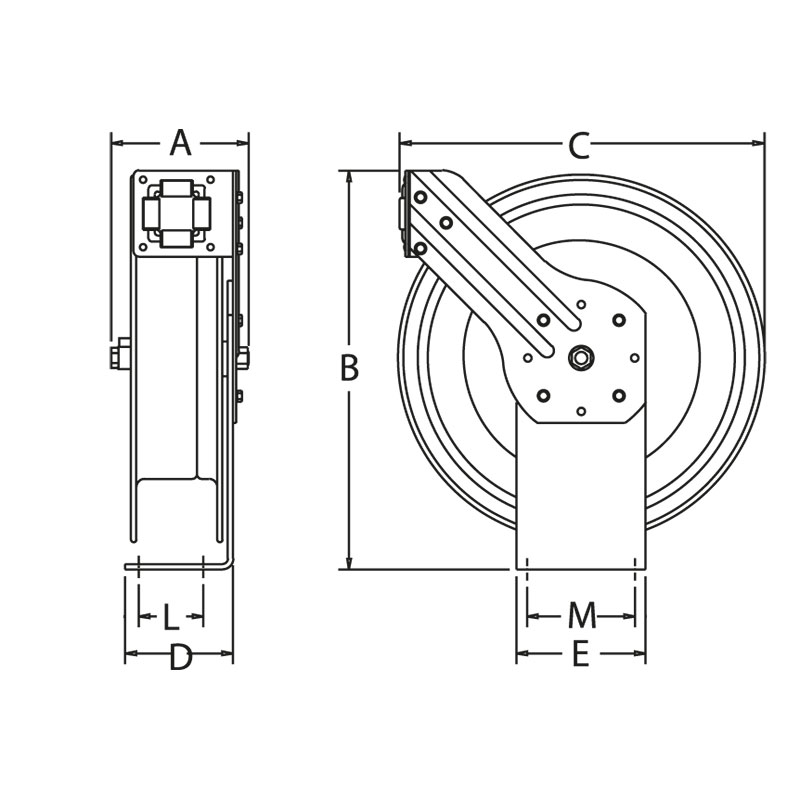

| Dim A | 222 |
| Dim B | 533 |
| Dim C | 498 |
| Dim D | 152 |
| Dim E | 152 |
| Dim L | 102 |
| Dim M | 127 |
| Weight | 29 |
| Temperature (Max) | 99°C |
| Hose/Cable | Medium Pressure 1 Wire Braid.Oil |
| Rating | Medium Pressure |
