MPD-N-430 Spring rewind “Dual Hydraulic” hose reel12mm ID, L= 9m

Spring rewind “Dual Hydraulic” hose reel. Low Pressure. Capacity 9m x 12mm ID hose.

SKU: MPD-N-430 Category: Tag: Brand:

COXREELS® MPD Series “Dual Hydraulic” hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. spring driven retraction reel at 3,000 PSI.

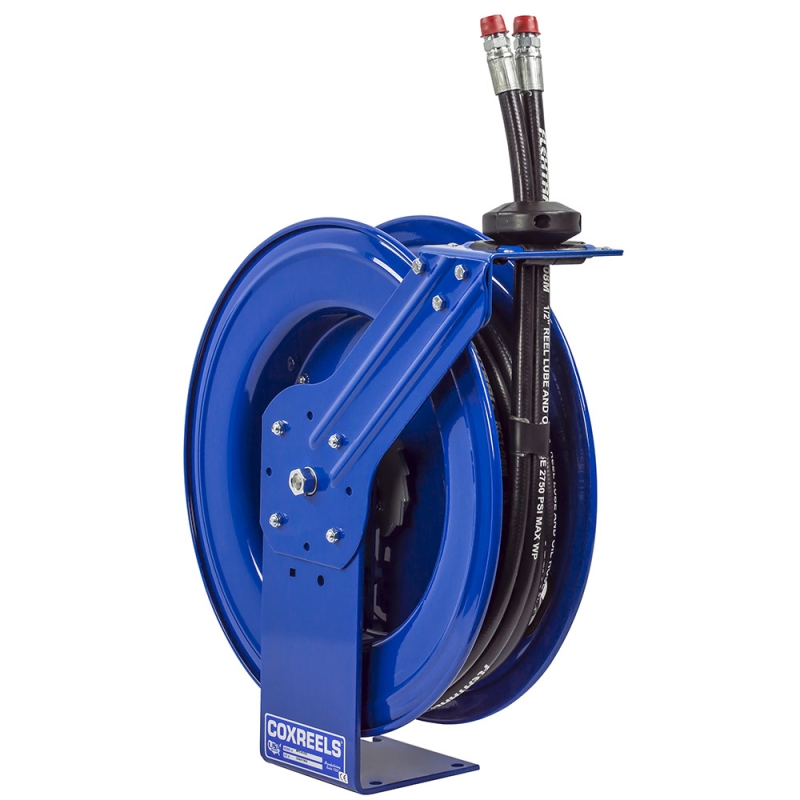

Model shown: MPD-N-430

Weight 36 kg
Dimensions 57 × 33 × 61 cm
Hose ID

12
Hose OD

21
Hose Length

9
Working Pressure

175
Inlet

1/2" x 1/2" NPT (F)
Outlet

1/2" x 1/2" NPT (F)
With hose

Yes
Leader hose

No
Drive

Spring

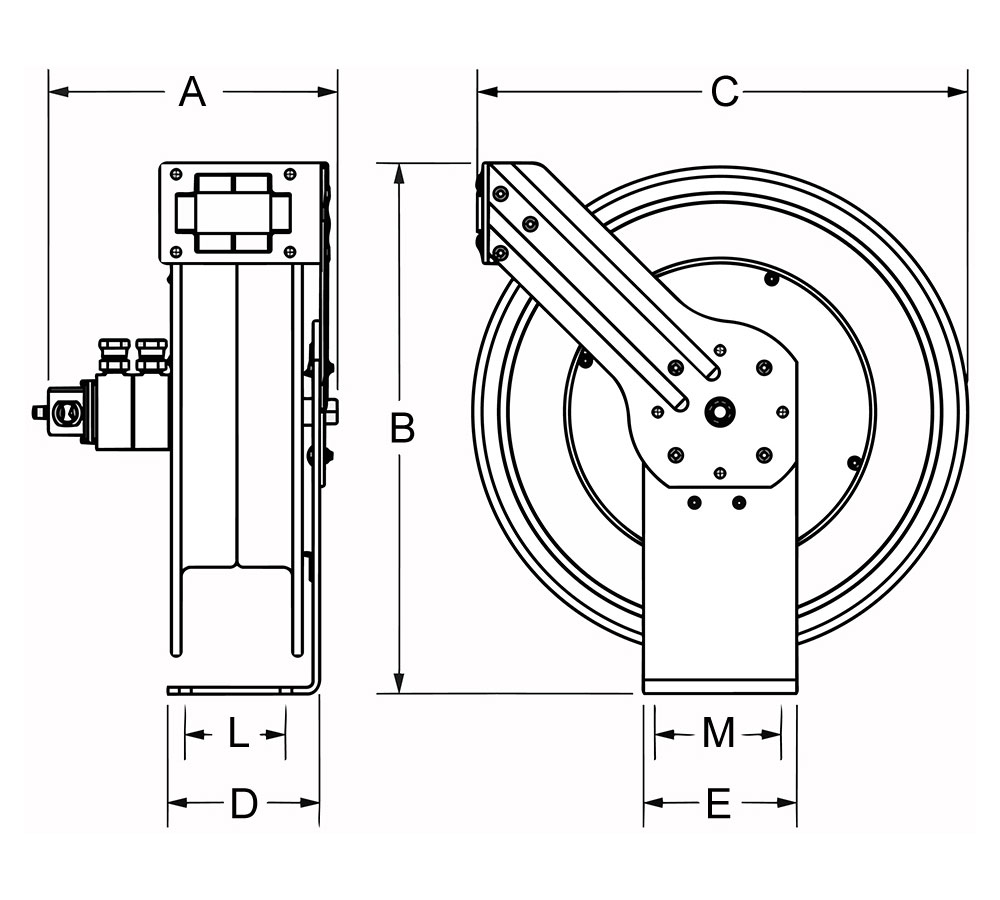

Dim A

298
Dim B

533
Dim C

498
Dim D

152
Dim E

152
Dim L

102
Dim M

127
Weight

36
Temperature (Max)

99°C
Hose/Cable

Twin hose, 1 Wire Braid, Oil
Rating

Medium Pressure
Hose stop

Yes
Media

Hydraulic Oil
